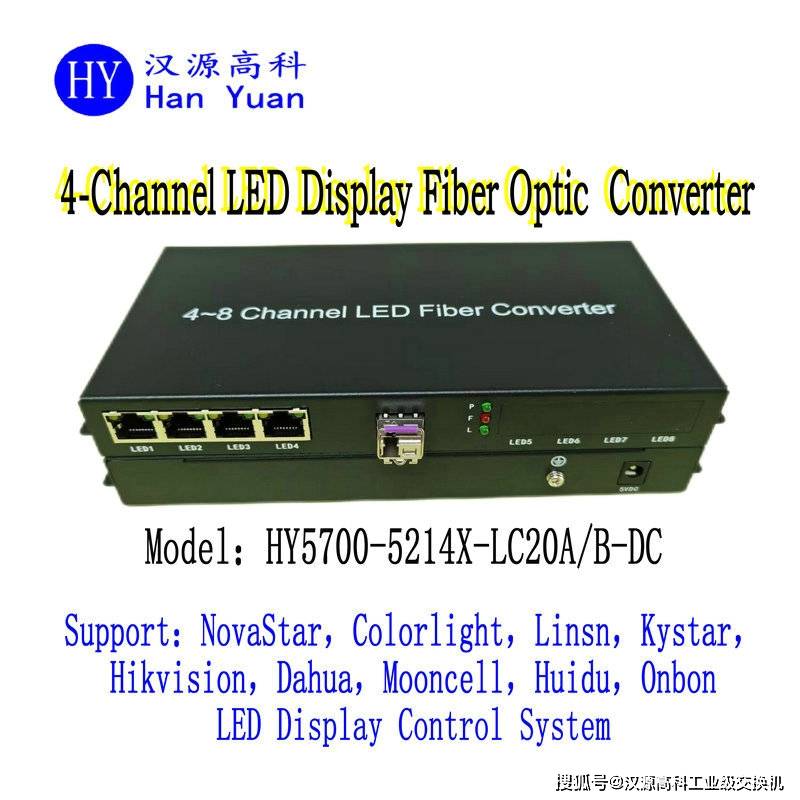

Hanyuan Gaoke‘s Desktop 4‑Channel LED Display Fiber Optic Transceiver – An Efficiency Revolution Tool for LED Display Integrators

As competition in the LED engineering industry intensifies, integrators’ profit margins are being squeezed, while equipment compatibility issues have become an “invisible black hole”devour profits. Industry data shows that in small and medium‑sized LED projects, debugging rework caused by control card brand compatibility accounts for as much as 42%, and the labor cost of specialized debugging personnel exceeds 30% of total project costs. Many integrators face projects where clients specify different control card brands such as Nova, Colorlight, and Linsn. Traditional fiber optic transceivers have poor protocol adaptability, often only compatible with 1‑2 mainstream brands, forcing integrators to stock multiple device models – tying up significant capital and requiring substantial time for parameter debugging and protocol matching. A small mistake can lead to image stuttering, synchronization errors, customer complaints, or even penalties, severely impacting project profits and industry reputation. Hanyuan Gaoke has accurately identified the core pain points of integrators and launched the desktop 4‑channel LED display fiber optic transceiver HY5700-5214X-LC20A/B-DC. With its core advantages of seamless full‑brand compatibility and plug‑and‑play no‑debugging operation, combined with the stable performance of imported chips, it provides integrators with an efficiency revolution tool that greatly reduces labor costs, schedule risks, and increases project profitability.

展开全文

Seamless Full‑Brand Compatibility – Say Goodbye to Multi‑Device Inventory Headaches

Hanyuan Gaoke‘s desktop 4‑channel LED display fiber optic transceiver HY5700-5214X-LC20A/B-DC features a self‑developed multi‑brand protocol adaptation chip,passed through thousands of compatibility tests, achieving seamless compatibility with all series of full‑color LED control cards from Nova, Colorlight, Linsn, Kystar, Hikvision, Dahua, YB, Merciful, Huidu, Linsn Vision, Yikou, Jucheng, Zhonghang, and others – with a 100% adaptation rate. Whether a project uses a single brand of control cards or a complex mix of multiple brands, there is no need to change transmission equipment. One device handles all compatibility issues. This advantage completely solves the integrator’s pain point of “stocking different equipment for different projects,” significantly reducing inventory capital tie‑up and management difficulty, while avoiding project delays caused by mismatched equipment models.

Case in point: A medium‑sized integrator took on an urban commercial complex LED screen project involving 16 screens. The client required the main screen to use Nova sending and receiving cards, the side screens to use Colorlight receiving cards, and the floor screens to use Linsn control cards. Previously, for similar mixed‑brand projects, the integrator needed to stock three different models of traditional fiber optic transceivers, tying up over RMB 30,000 in inventory. Debugging required three specialized engineers to configure parameters and adapt protocols separately, taking 5 days with labor costs exceeding RMB 6,000. After switching to Hanyuan Gaoke’s HY5700-5214X-LC20A/B-DC, only one device model was needed to adapt to all brands, with no protocol debugging required. One ordinary installer completed all equipment connections and deployment in just 2 days. This saved RMB 20,000 in tied‑up inventory, reduced labor costs by RMB 4,800, delivered the project 3 days early, earned an RMB 8,000 early completion bonus, and generated over RMB 12,000 in extra profit for the single project.

Driver‑Free, No Configuration, Plug‑and‑Play – Technical Barrier Reduced to Zero

When deploying traditional fiber optic transceivers, specialized engineers are required to perform complex operations such as IP address configuration, transmission rate matching, and full‑duplex/half‑duplex mode settings. For small and medium‑sized integrators, the scarcity of technical specialists leads to high project debugging costs. Hanyuan Gaoke‘s desktop 4‑channel LED display fiber optic transceiver HY5700-5214X-LC20A/B-DC adopts an adaptive bidirectional working mode with optoelectronic conversion, supports hot‑swapping, requires no driver installation, and needs no parameter settings. Simply connect the control cards and screens according to the numbered network ports, apply power, and it works. The device is equipped with clear status indicators, allowing installers to quickly judge operating status without complex testing tools – completely eliminating dependence on specialized technical personnel.

Case in point: A small integration company specializing in community LED information screen projects had only 2 ordinary installers and no transmission technician. When taking on a project for 6 communities, they originally needed to hire an external specialized engineer for debugging at an estimated cost of RMB 2,400, with a debugging period of 3 days. After choosing Hanyuan Gaoke‘s HY5700-5214X-LC20A/B-DC, the installers followed the product manual and completed installation and debugging for one community within 1 hour. All 6 communities were fully deployed in just 1 day, saving the RMB 2,400 hiring cost. Additionally, the project was completed 2 days early, earning a RMB 4,000 early completion bonus, generating an extra RMB 6,400 in profit for the single project, and increasing the project profit margin by 12 percentage points. The company owner said: “Hanyuan Gaoke’s equipment frees us from relying on specialized engineers. Ordinary workers can handle the debugging. Not only do we save money, but we can also take on more projects – our business has doubled.”

Imported Chips for Stable and Reliable Transmission

The stability of equipment performance directly determines project reputation. Hanyuan Gaoke‘s desktop 4‑channel LED display fiber optic transceiver HY5700-5214X-LC20A/B-DC uses imported network switching IC chips, rigorously tested with 1,000‑hour aging tests, improving data transmission stability by 60% compared to traditional devices. The device features one 10Gbps fiber optic interface and four Gigabit RJ45 ports. Each network port has its own dedicated Gigabit transmission channel, free from mutual interference, enabling line‑rate forwarding and ensuring stutter‑free, latency‑free transmission of high‑definition video signals. It also supports store‑and‑forward mechanism with precise time synchronization capability, achieving synchronization deviation of less than 50ms for multi‑screen coordination – delivering smooth and continuous images.

Case in point: A wedding company took on a large wedding venue LED screen project requiring simultaneous transmission of the live wedding feed, dynamic background effects, and the couple’s growth video, using a combination of Nova sending cards and YB receiving cards. Previously, with traditional transmission equipment, they frequently experienced image stuttering and synchronization issues, repeatedly affecting rehearsal progress and even facing the risk of customer contract cancellation. After switching to Hanyuan Gaoke‘s HY5700-5214X-LC20A/B-DC, the device perfectly worked with both control cards. The 10G high bandwidth easily carried multiple high‑definition video streams, with precise synchronization. Throughout the wedding, there were zero signal failures, earning high praise from the couple and guests. Thanks to the outstanding performance of this project, the wedding company subsequently received orders for 8 more large‑scale wedding LED screens, significantly expanding their business and establishing long‑term partnerships with multiple wedding agencies.

Compact Desktop Design – Flexible Deployment Adapts to Multiple Scenarios

Hanyuan Gaoke’s desktop 4‑channel LED display fiber optic transceiver HY5700-5214X-LC20A/B-DC features a compact desktop design, measuring only 225*105*25mm and weighing less than 300g. Installers can easily slip it into a tool bag for portability. This compact, portable design allows the device to fit into many installation scenarios – whether it‘s the small equipment enclosure of a community information screen, the ceiling corner of a shopping mall advertising screen, or the temporary support of a wedding stage – it fits easily. The device also uses 5V DC power, consuming less than 5W, and can be powered by a common phone charger or USB power source – no dedicated 220V outlet required. In temporary scenarios without mains electricity, it can be flexibly deployed, further enhancing deployment flexibility.

Case in point: An outdoor exhibition setup project required deploying 12 temporary LED screens within 3 days. The exhibition venue provided only limited mains power outlets, and installation spaces were cramped. Traditional transmission equipment was bulky and required 220V power, failing to meet on‑site needs. After choosing Hanyuan Gaoke’s HY5700-5214X-LC20A/B-DC, the compact size easily fit the installation spaces, and 5V DC power could be supplied via power banks, solving the problem of insufficient mains outlets. The installers completed deployment and debugging of all equipment in just 1 day. The equipment ran stably throughout the 3‑day exhibition with zero failures, earning high praise from the exhibition organizer, who subsequently designated Hanyuan Gaoke as its preferred transmission equipment supplier.

Conclusion

Against the backdrop of shrinking profits in the LED engineering industry, controlling costs and improving efficiency are core to the survival and growth of integrators. Hanyuan Gaoke‘s desktop 4‑channel LED display fiber optic transceiver HY5700-5214X-LC20A/B-DC, with its core advantages of seamless full‑brand compatibility, plug‑and‑play no‑debugging operation, stable transmission powered by imported chips, and flexible desktop deployment, helps integrators significantly reduce inventory costs, labor costs, and schedule risks, while improving project profitability and reputation. Whether in commercial complexes, community information screens, wedding stages, or outdoor exhibitions, it is an indispensable assistant for integrators, helping them break through the fierce market competition with ease.
